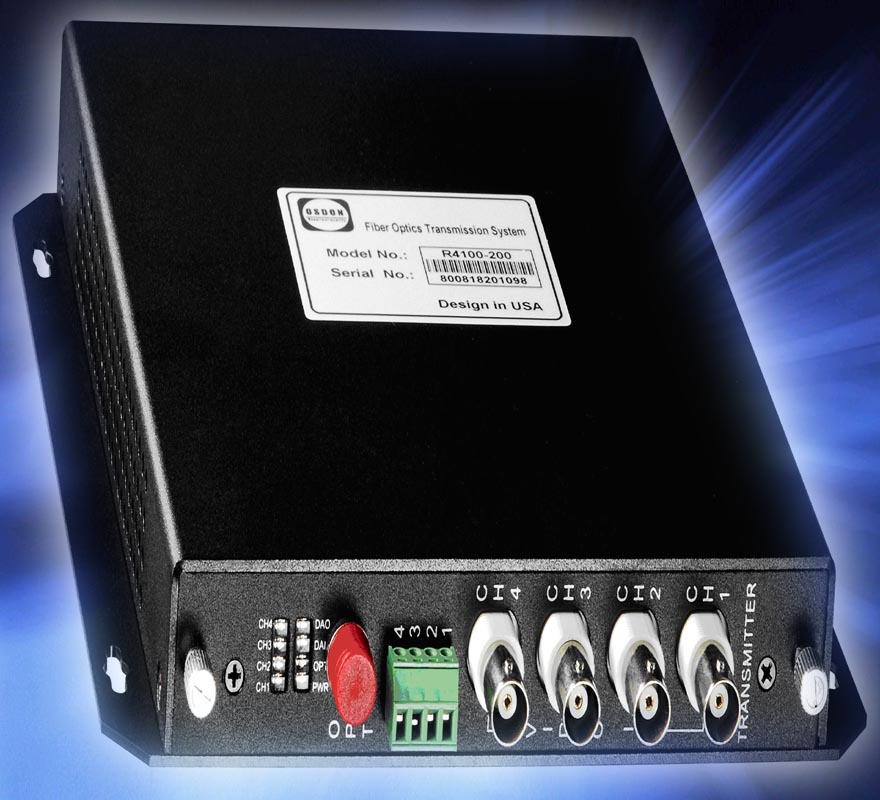

Digital Video Optical transceiver 4-way Series |
|
. Technical parameters,non-compressed 10-bit linear PCM encoding |
|
|
4way |
|
Video Bandwidth |
6.5 MHz |
|
|
|
PAL、NTSC、SECAM |
|
voltage |
1Vp-p 75Ω |
|
Video SNR |
≥67dB |
|
DG error |
≤0.7% |
|
|
≤0.7° |
|
|
ST、FC、Single fiber transmission |
|
|
BNC |
|
15MHz High-Speed Sampling |
4 way video + 2 channel data |
|
|
1310/1550 nm |
|
|
|
|
RS485/422/Manchester/RS232 optional Support more than 8-way bi-directional data
Transfer rate:0 to 400Kbps
Bit error rate is less than:10-9
Phoenix terminal,bidirectional,data interface |
|
|
CD-quality,Maximum input level:4Vp-p,Supports 8-channel bi-directional audio.
24-bit audio, 96KHz sampling,20-20KHz bandwidth audio
Channel isolation:90 dB at 1 KHz audio SNR ≥88dB |
|
Binary |
support more than 8-way bi-directional switchs |
|
|
10M/100M Ethernet, Fast Ethernet ports |
Power Supply: Send 0.5A @DC12 V
Receive 0.45A @DC12V
Environment
Operating Temperature: -40℃ to 75℃
Storage temperature: -55℃ to 85℃
Humidity:0 to 95% Non-condensing
MTBF：
>100,000 hours
3 level anti-lightning protection
Quality assurance:
Semi-annual replacement
One-year warranty
Description:
The optical non-compressed digital video product line also supports an expansion of video Optical audio, data, switching capacity, Ethernet function. Customized products according to customer needs
