ITEM

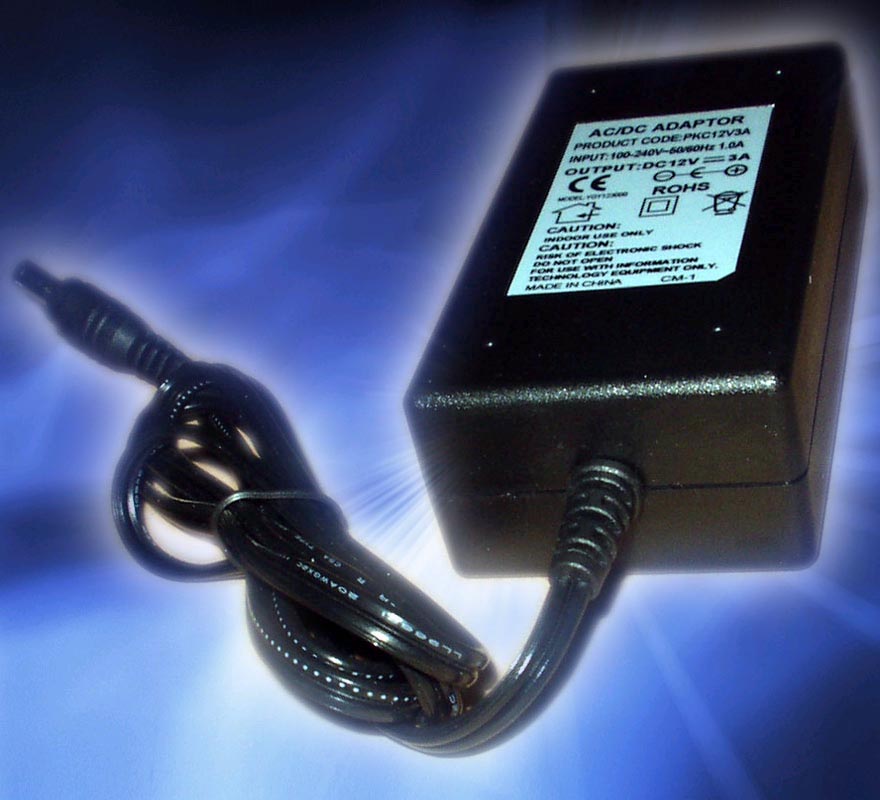

PKC12V3A

Description

12 V 3A DC

Input

Input AC plug

Optional

Input voltage

AC100-240V50/60Hz

Output

Output Connect ing plug :

5.5*2.1mm DC

Output voltage:

12V DC

Output electric current:

3000MA

R ipple wave :

(mVp-p): <1%

Linear modulate:

±0.5%max

Temperature coefficient:

±0.02%/℃

start time

≤1s(240V output,1o=100%)

guard time:

≥20ms(240V input,1o=100%)

Protection

override protection :

115% ～ 150% kvA , automatic recovery

overvoltage protection

30% ～ 150% V AC ,No recovery

short-circuit protection

1 channel ： automatic recovery

Environment

working temperature :

0℃ ～ 40℃,10% ～ 90%RH

Store temperature :

-20℃ ～ 85℃,10% ～ 90%RH

ASL :

<3000m

Cooling:

Environment

Size

Size:

X X mm

weight:

G
