  Water Proof Power Supply PKWF12V5A
Product Name:Water Proof Power Supply PKWF12V5A
Product S/N:110817235
Specification:DC12V5A60W
Product Feature:waterproof
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

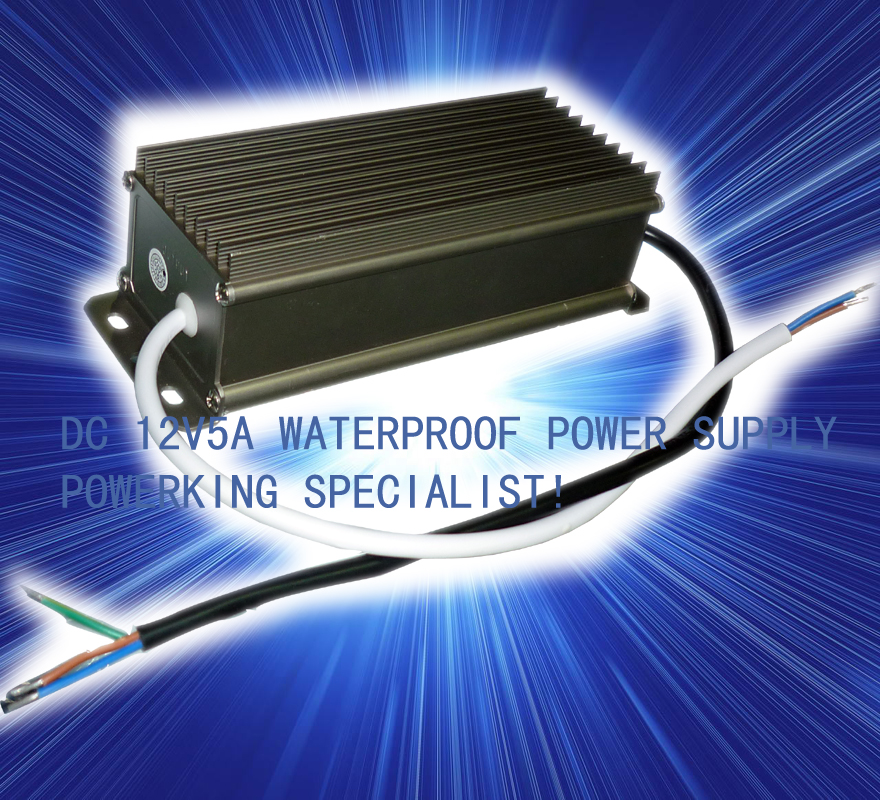

Metal Case water proof power supply
Input:110-220V
Output:DC12V,5A
1:Wire connection
Input:
A:Brown wire connects live wire 'L';
B:Blue wir connects neutral wire ‘N’;
C:Yellow & Green wire connects ground wire ‘GND’;

Output:
a:Brown wire connects anode '+';
b:Blue wire connects negative pole '-';

2:Outlook and installed dimension:
Specification:L*W*H(mm)=178*66*54mm;
Housing material:Aluminum;
Aluminum dimension:178*66*54mm;
Input wire model:VDE HQ3VV-F 3G 0.75mm² Black,Length of the wire:200mm;
Output wire model:VDE HQ3VV-F 2*0.75mm² white,length of the wire:200mm;
