Product Name:CCTV backup power supply PK12V3AB Product S/N:201110072 Specification:DC12V3A36W Product Feature:supply DC12V3A current when AC power fails,support one 12V7AH battery Product Class:01.Power Supply Quality Rank: Chat with us: Email:

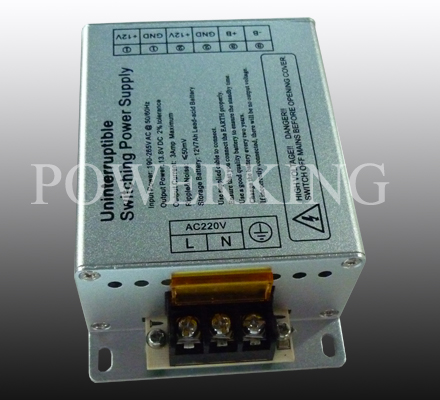

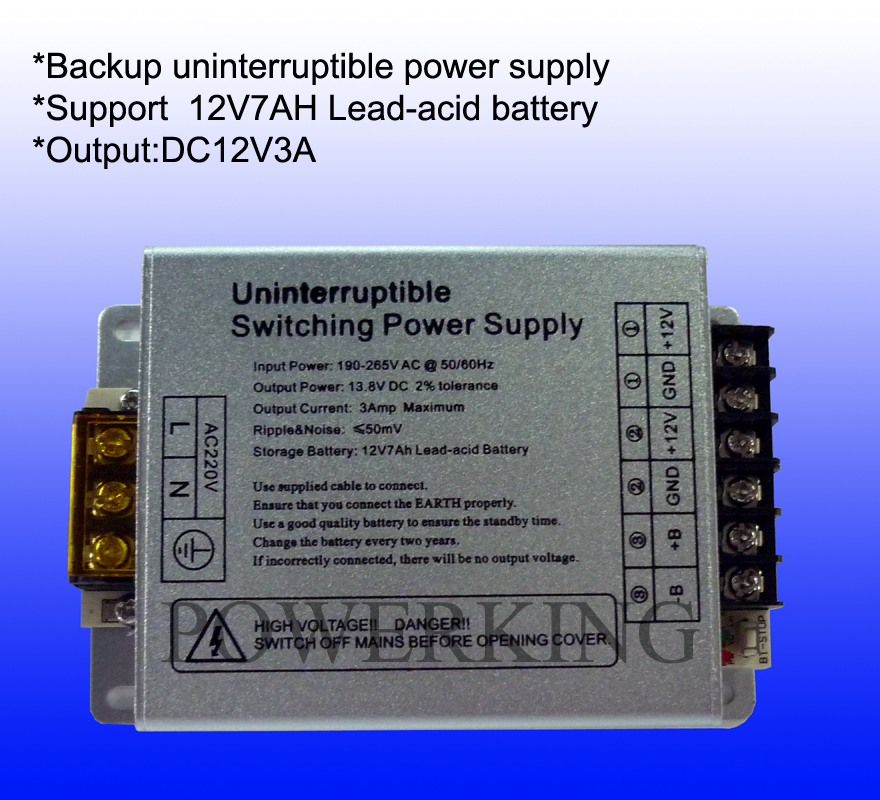

PK12V3AB is a CCTV unintterupt backup power supply,it can support 1 12V7AH battery. Specifications：
Input 100~240VAC 50 / 60 Hz .
3 amps (36W) supply current.
Output group：2 Channel
Main fuses are rated at 3 amps.
Recommended for 12V/7.0Ah battery charging, it need not be disconnected after charge.
AC power LED indicator.
battery undervoltage protection:10V
Short protected outputs.
Surge protected outputs.
Over charge protected battery / Over discharge protected battery / Polarity in reverse protection
Enclosure dimensions(mm): 120H*80W*45D
Easy of installation saves time and eliminates costly labor.
