 02.POE(Power Over Ethernet) >> POE Adaptor >> POE24W

  POE24W
Product Name:POE24W
Product S/N:21516311521
Specification:POE24W
Product Feature:POE24W
Product Class:02.POE(Power Over Ethernet)
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

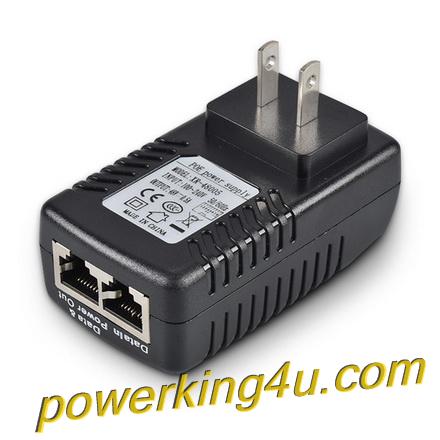

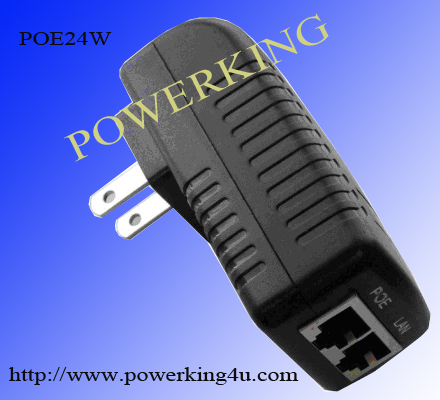

POE24W a wall-plug type POE injector with AC wide Input Voltage 100-240V.
2 Types DC Output 12V,24V
Rated max Output Power 24W
Output power supply with Short-Circuit protection, Over-Current Protection, Output Over-voltage Protection .The whole power supply design in strict accordance with the Safety requirements.
Apply to Network security cameras, wireless AP and a series of products that need Network cables to power on.
This Network Injector has USA,EU and UK etc types of plug




Specification

Model

Specification

POE24W

Output

Output Voltage

DC 12V

DC 24V

DC **V

Rated Current

2A

1A

**A

Current Range

0---1.25A

0---0.63A

0---0.32A

Ripple Wave

<100mVp-p

<150mVp-p

<200mVp-p

Output accuracy

±5%

±5%

±5%

Line Regulation

±2%

±2%

±2%

Load Regulation

±2%

±2%

±2%

Rated Power

24W

24W

24W

Input

Input Voltage

90V---265V AC

Normal working Voltage

100V---240V AC

Input Current

0.4A/110V;   0.2A/220V;

Frequency Range

47---63Hz

Efficiency

≥85%



Protection

Overload Protection

105%-150%Rated power, automatic recover

Output Over-voltage protection

110%-120%Rated voltage

Output Short- Circuit Protection

Output short ciruit when the power will not damage for a long time,
short circuit after removing the power can be restored to normal work.

Over-Temperature Protection

/

Other Function

Environment

Working temperature & humidity

-20~+40℃@100%LOAD, +60℃@60%LOAD, 20%~90%RH

Storage temperature & humidity

-20~+85℃ , 10%~95%RH

Heating

Natural cooling

Safety & EMC

Safety Standard

UL 60950 Standard

Withstand Voltage

I/P-O/P: 3KV AC, 10mA,60S

Insulation Resistance

I/P-O/P: 500VAC 100MΩ

Reliability

MTBF

According to the MIL-HDBK-217F standards, full load, 25℃, MTBF 30000 hours

Input output pin function of RJ-45 port

RJ-45 Input (Data Only)

RJ-45 Output (Data & Power)

Pin

Symbol

Description

Symbol

Description

1

RX+

Data Receive(+)

RX+

Data Receive(+)

2

RX-

Data Receive(-)

RX-

Data Receive(-)

3

TX+

Data Transmit(+)

TX+

Data Transmit(+)

4

BI_D3+

Bi-directional Data+

BI_D3+

DC power(+) & Bi-directional Data+

5

BI_D3-

Bi-directional Data-

BI_D3-

DC power(+) & Bi-directional Data-

6

TX-

Data Transmit(-)

TX-

Receive Data-

7

BI_D4+
Bi-directional Data+
BI_D4+

DC power(-) & Bi-directional Data+

8

BI_D4-
Bi-directional Data-
BI_D4-

DC power(-) & Bi-directional Data-

Dimensions&

Weight

Weight

170±20g

Dimensions

83mm*55mm*47mm

Remark

1, All the parameter values in 220 vac input, rated load, environmental temperature 25℃,
70% humidity conditions is measured.
2, Precision including setting error precision, the line regulation, load regulation, etc.
3,Ripple test, through the output lines to connect the power and load,load0.1uF and
47uF capacitance in parallel, to 20M bandwidth oscilloscope measured at the load end.
4, Line regulation: under the rated, the measured input voltage changes from low to high.
5, Load regulation: measured output load from 0 to 100% measured load change.
