 01.Power Supply >> Rack Mount Power Supply >> DC 15V 24A 16 channel 1.5U RACK MOUNT POUWER SUPPLY PK1516-24A-1.5U

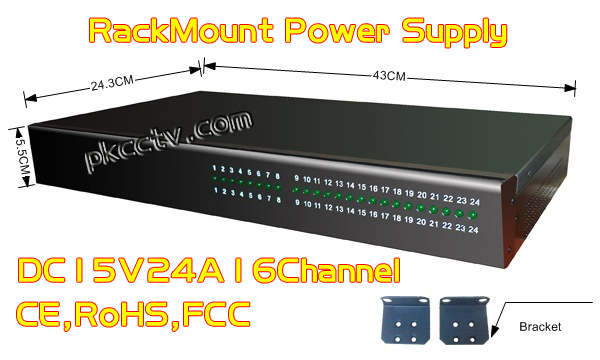

  DC 15V 24A 16 channel 1.5U RACK MOUNT POUWER SUPPLY PK1516-24A-1.5U
Product Name:DC 15V 24A 16 channel 1.5U RACK MOUNT POUWER SUPPLY PK1516-24A-1.5U
Product S/N:8282051000
Specification:DC 15V 24A 16 channel 1.5U
Product Feature:rack mount,screw terminal,PTC fuse,CE&RoHS
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description


Input Voltage ： AC100-240V
Input Voltage Frequency ： 60 Hz/ 50 Hz
Output Voltage ： DC 15V
Total Output Current ： 24A
Total Outputs ： 16 channel
Fuse Type ： PTC (Resetable)
Fuse Rating ： 1500MA
Features ：
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: each output has independent PTC fuse.
Application ： CCTV Camera, PTZ, IR Illuminator, Video Processor， Access Control , etc.
product Dimension ： 430x243x55（ mm ）
Net Weight ： 4.2Kg
