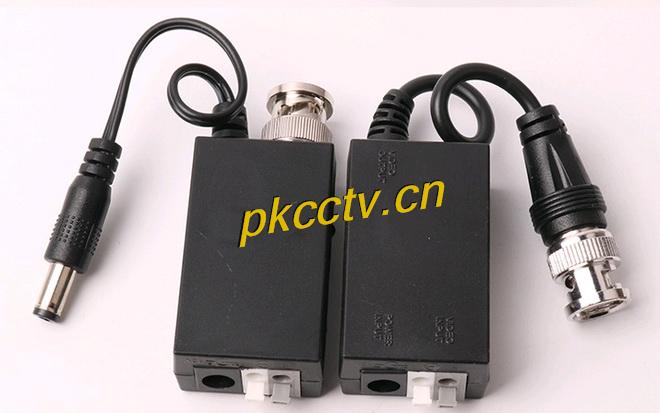

  Passive one-way video balun PKVB-CTA8
Product Name:Passive one-way video balun PKVB-CTA8
Product S/N:112223494722
Specification:Passive one-way CVI/TVI/AHD
Product Feature:Passive one-way CVI/TVI/AHD video balun PKVB-CTA8
Product Class:08.Transmission System
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

For CVI, AHD, TVI cameras and DVRs
Active transmission up to 1200 meters high definition
Color video HD-CVI 720P
Color video HD-CVI 1,080P
Color video AHD 720/960P

Key Specifications/Special Features:

Single channel passive video transceiver
Transmitting real-time AHD/CVI 1080P/720P video
No power required
Exceptional interference rejection and built-in protection setting
Convenient wiring installation, higher cable utilization rate and lower composite wiring cost
Compact size


Video AHD/CVI 1080P & 720P real-time
Frequency DC To 8MHz
Impedance Coax BNC: 75Ω, UTP: 100Ω
CMRR 60dB typ
Attenuation 0.3dB typ
Temperature Working temp: -10°C-+50°C
Storage temp: -30°C-+70°C
Humidity 0- -95%RH
Wire Type UTP CAT5, 24-16AWG
Impedance 9Ω(100M)
Power Active(DC)
UTP Port Terminal Block
Dimensions(mm) 50*16*16
Weight(g) 23
