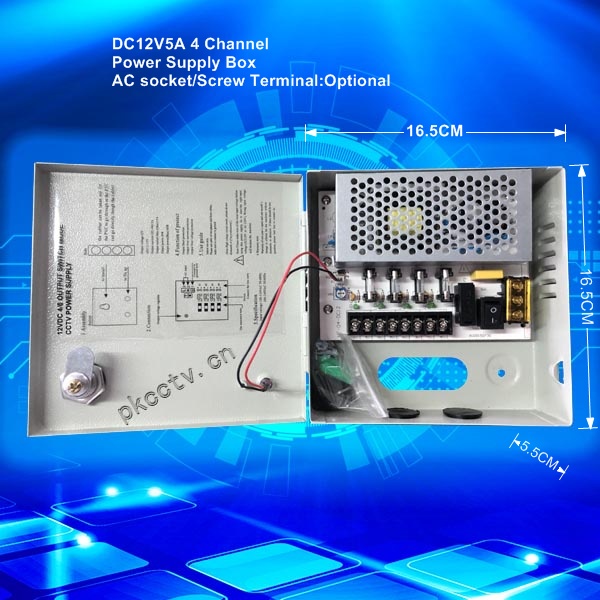

  Integrated Distribution Box PK1204-5AE
Product Name:Integrated Distribution Box PK1204-5AE
Product S/N:122316345320
Specification:Integrated Distribution Box 12V10A 9 channel PK1204-5AE
Product Feature:Integrated Distribution Box 12V5A 4 channel PK1204-5AE
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
  Description for PK1204-5AE:
  Input Voltage:AC 100-240
  Input Voltage:Frequency 50/60Hz
  Output Voltage:DC 12V
  Total Output Current:5A
  Total Outputs:4
  Fuse Type:PTC (fusable)
  Fuse Rating:1.25A
  Mains power with surge protection
  Internal ON/OFF switch
  Metal case with front door keylock
 New Technology,lower temperature!




  Certificate:CE &RoHS

  General Protection:each output has individual PTC fuse and LED indicator, when problem  occurs, only affect the individual output, other outputs still working.
Circuit Short Protection:when short condition occurs, individual PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High Voltage Protection:when high voltage occurs, the surge protection  will be hit through to protect the connected device.
  Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
warranty:1 year warranty.
  Application
  CCTV Camera, PTZ, IR Illuminators, Video Process Equipment, etc.
Access Control  Reader, Lock, Panel, etc.
  Cabinet Dimension:16.5 x 16.5 x 5.5(cm)
  Packing Dimension:17 x 17 x 6(cm)
  Net Weight:1.6kg

Model
PK1209-20A
Output Group
4
Output Current
5A
Input Voltage
85 – 265 VAC
Rated Input Voltage
100 – 240 VAC
Input Frequency
50 – 60 Hz
Output Voltage
12V DC
Output Voltage Adjustment Range
10.8 – 13.5V
Max Single Output Current
1.25A
Average Full-load Current
1.25A
Ripple Voltage
<120mV
Dielectric
strength
Input and Output
AC 3.0 KV, 1min, 10 mA Test
Input and Shell
AC 2.5KV, 1 min, 10 mA Test
Output and Shell
DC 500V, 1 min, 10 mA Test
Function of protect
1、Output short protection
2、Output over current protection 3、Output over voltage protection
Safety Standards
GB4943、UL60950、EN60950-1
EMC Standards
GB9254、EN55022 Class B FCC
Certification
CE、RoHS
Thermal Methods
Natural air convection, metal box conducts heat
Radiation Protection
Metal box shields electromagnetic radiation, Prevents interference
Operation temperature
-20℃ ~ +45℃
Product Dimension
165(L) X 165(W) X55(H) mm
Packing Dimension
170(L) X 170(W) X 60(H) mm
Weight
1.6Kg
●     Use of efficient, environmental protection switching power supply
●     Optimization of the shape and structure to facilitate the construction systems
●     Small ripple-video output signal more stable, clearer images
●     Splitter output-by-pass failure to protect other equipment to work
●     Power protection-Output over-voltage protection, over-current
Protection, short circuit protection
●     Material of PCB uses 2 ounce brass and fiberglass plate, with
highly mechanical, anti-inflammation (UL94-V0 grade), it's
best grade in stability, sticking, sobbing, hot decomposition and
expansion, keeps whole product working in best condition.
