 11.Access Control >> Electric Lock >> RF ID Gate Lock ID-G-Lock

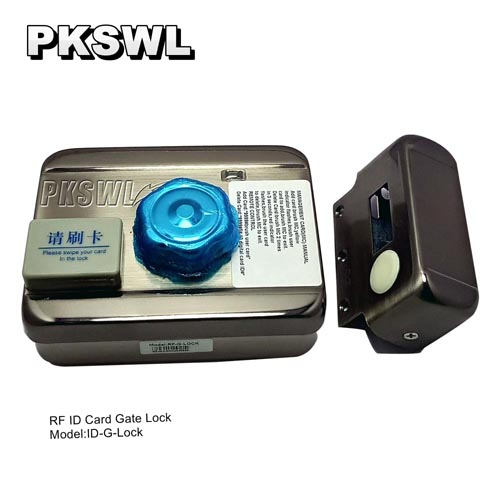

  RF ID Gate Lock ID-G-Lock
Product Name:RF ID Gate Lock ID-G-Lock
Product S/N:31912195224
Specification:RF ID Gate Lock ID-G-Lock
Product Feature:RF ID Gate Lock ID-G-Lock
Product Class:11.Access Control
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

RF ID card Gate Lock
Function characteristic
1:All entrance doors should be unlocked by access card or remote control

hich supports EM or EM compatible card long-distance high-speed card reading

within external Dual Reader Card: Support 315M Learning Remote Controller,

2. The integration of access control host and smart lock is realized, and double

encryption wireless key board is added

3. Compatible with all building intercom system and access control system unlock


4. It has anti-prying alarm and does not close the door on time

5. Lock automatically after closing, the state of the lock has sound and light prompts,

and closing door without collision, noise and green Environmental protection

6, Integrative structure design is highly destructive, its circuit and mechanical

design are reasonable, easy to install and operate Convenient, strong and durable.

Electric property

1. Input Voltage: DC12V+20% Static Current <80MA Active Current 350MA

2. Radio frequency card unlocking reaction time <0.5S card reading

distance 20mm

3. Opening reaction time of remote controller< 0.3S remote control

distance > 30m

4. Opening Current s 280 MA

5. Alarm output current< 300 MA alarm accuracy: >99. 9%

6. Working environment temperature:-40-70 C, temperature<95%

7. Surge Resistance: IEC801-5 Standard

8. Disturbance immunity: IEC801-5 standard
