POE Extender
Model:POE5520
PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m,
delivering both data and power to network devices such as WLAN Access Points and Network
Cameras up to  a distance of 200m while complying with IEEEPoE and Data standards.
The PoE Extender supports 10/100Mbps data rates and delivers 802.3af power levels, up to
15.4W,  The  PoE  Extender  does  not  require  local  power  and  is  powered  via  the  PoE
input.Extended PoE installation range by additional 100m
Supports 10/100Mbps data rates
-Provides 802.3af power levels when powered by any 802.3at source
-Extenders can be cascaded to reach up to 700m
-Cost effective installation-no need for local power
-Plug and play installation-no configuration needed

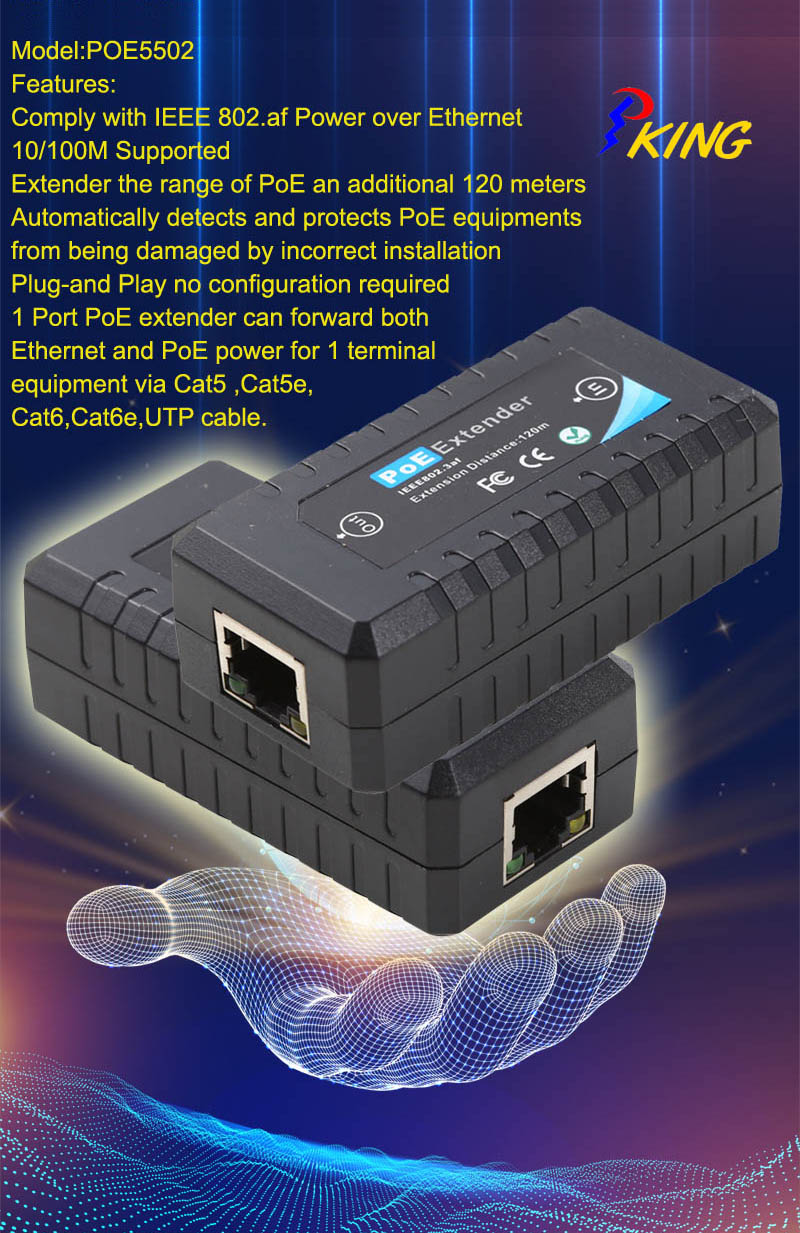

Features:
Comply with IEEE802.af Power over Ethernet
10/100M Supported
Extender ther ange of PoE an additional 120 meters
Automatically detects and protects PoE equipments from being damaged by
incorrect installation
Plug-and Play no configuration required
1 Port PoE extender can forward both Ethernet and PoE power for 1 terminal
equipment via Cat5,Cat5e,Cat6,Cat6e,UTPcable.
Product Review:
1-Port  PoE  Extender  has  2  10/100M  Lan  ports,among  them,one  for  power
input,the other for power out put.Comply with 10/100BASE-TX,IEEE802.3af-PoE.
Power input for single port is 13W.Power output for single port is 12.2W.

Applicable Range:
Used with AP,IP camera,IP telephone and the other network equipments in the
situation of the lack of power line or faraway from the power outlets
Installed at hotels,schools,buildings,villages,etc.
Other Specification:
PoE input:1RJ45port
PoE output:1RJ45port
Network Medium:Cat5 or better UTP cables(lessthan120m)
Repeater Mode:Store and forward
MAC Address Table:2K
Packet Buffer Memory:48Byte
Switching Capacity:400Mbps
PoE Standard:IEEE802.3af
Input power:13Watts
Output power:12.2Watts
Power Supply Type:1/2+,3/6-,ModeA,End-Span
Network  Protocol:  IEEE  802.3i-10BASE-T,  IEEE  802.3u:  100BASE-TX,  IEEE
802.3x-Flow Control,IEEE802.3af-Power over Ethernet;
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU,Low Voltage
Directive 2014/35/EU,EMC Directive 2004/108/EC;
Storage Humidity:5%~90%,No Condensation;
Dimension:75x37x26.5mm/2.95''x1.46''x1.04''
Weight:60g
Note:
Please don't place any heavy thing on the PoE extender;
To prevent the water seeping into the extender,please keep PoE extender away
wetenvironment;
Suggest   to  use  PoE  extender  indoors.When   installing  the  extender  in
outdoor,please install it in a waterproof place.

POE Extender Technical Parameter
Model	POE5502
Number of Channel	1
Data Transmission Rate	10/100Mbps
PoE Pin Ouput	1/2(+), 3/6(-)； MAX Power 15W
Indicators	LED indicators are located on the RJ45 connector Power indicator: PoE enabled
Connectors	Shielded RJ45, EIA 568A and 568B
Network Cable	Shielded Cat5，Cat5e，Cat6 or better
Dimension	75mm*38mm*26mm
Physical Property	Input Voltage: DC 44-57V Output Voltage: 48V Weight：60g
Condition	Working temperature: -10°c to 45°c Working humidity: MAX to 90%, non-condensation MTBF: 100,000h at 25°c
Regulatory compliance	IEEE802.3af/at, RoHS Compliant, CE, FCC
EMC	FCC Part15, Class B
Extending Distance	120m
